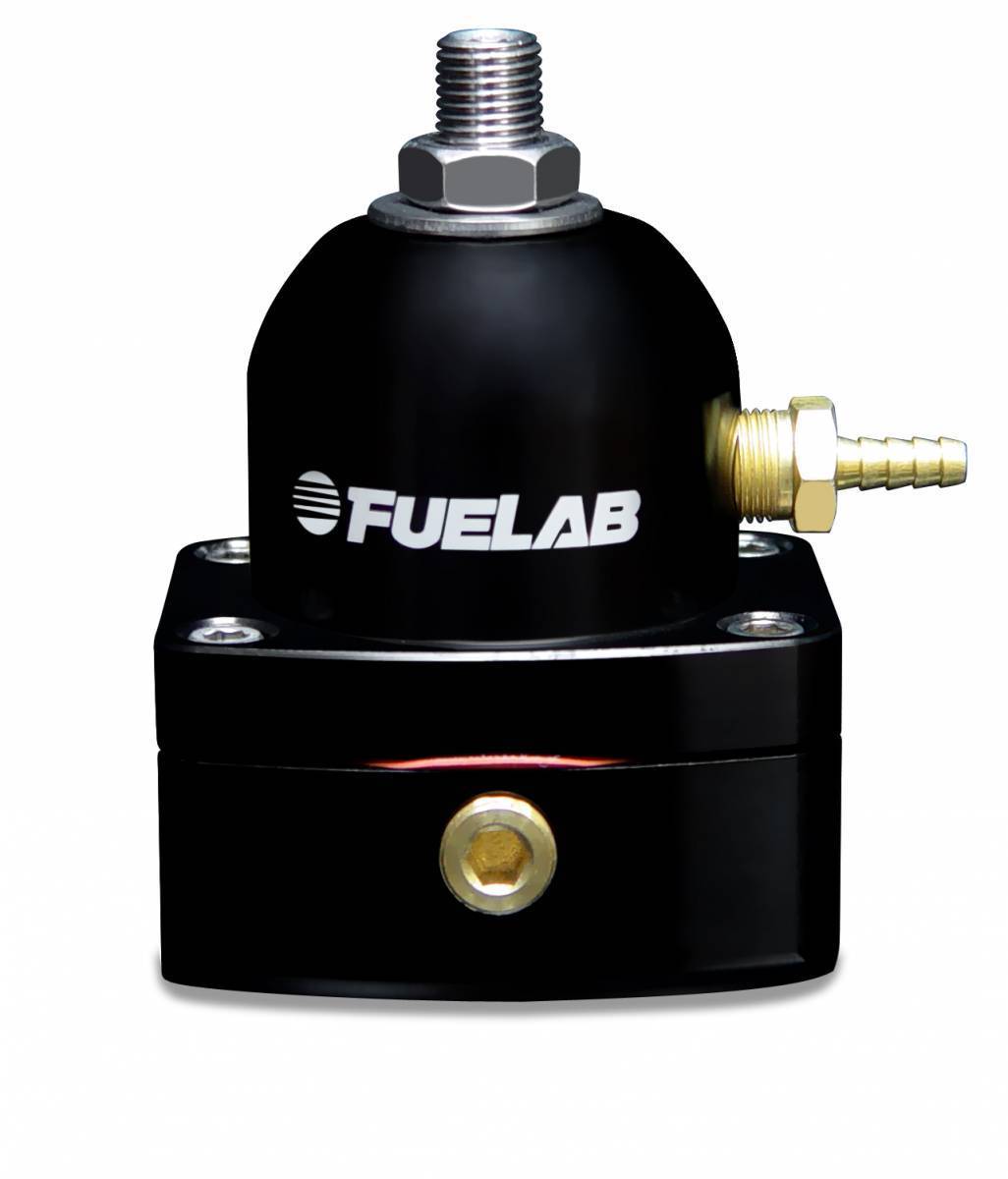

The FueLab 53501 Mini is a compact billet-aluminium EFI fuel pressure regulator with two -AN6 inlet ports and a -AN6 return, adjustable from 25-90 PSI (1.7-6.2 Bar) - built roughly 50% lighter than Fuelab's 515/525 Series.
Overview
The 535 Mini Series shrinks the standard EFI regulator down for tight engine bays and space-limited installations, while keeping the same 25-90 PSI adjustable range and mounting hardware as the full-size 515 Series.
Specifications
- Application: EFI
- Minimum Pressure: 25 PSI / 1.7 Bar
- Maximum Pressure: 90 PSI / 6.2 Bar
- Inlet Port Size: 2 x AN6
- Return Port Size: AN6
- Gauge Port Size: 1/8" NPT
- Construction: Billet aluminium, anodised to MIL-A-8625 Type II
- Fuel Compatibility: Petrol, diesel, methanol, and ethanol
- Warranty: Limited lifetime warranty
Key Features
- Weighs roughly 50% less than Fuelab's 515/525 Series regulators
- Easy installation in limited-space areas
- Two -6AN inlet ports and one -6AN return port
- Fine thread pitch for precise pressure adjustment
- 1/8" NPT gauge port with plug for an external pressure gauge
- 1/8" NPT pressure reference port with barbed fitting
How It Compares
Need larger -AN10 or -AN8 inlets at the same 25-90 PSI range? See the FueLab 51501 (-10AN, standard 515 Series) or the FueLab 59501 Ultralight (-8AN, 30% lighter).
FAQ
Will the 53501 fit in a tighter engine bay than the standard 515 Series?
Yes - it's the same EFI pressure range (25-90 PSI) in a body that's roughly 50% lighter and smaller than the 515/525 Series, built for exactly that.
Is this a carburettor regulator?
No - at 25-90 PSI it's built for EFI systems. For a carburettor, use the FueLab 51503 or 51505.
