The premium sound upgrade for 24 Volts multi-channel factory systems
The new UP 10DSP – 24V Edition is a real problem solver for upgrading sound systems in trucks and buses, especially thanks to its 24 Volts capability. Even though more and more vehicles are equipped with complex multi-channel sound systems ex works, the sound quality does not always meet one's expectations.
In many cases, a replacement is no longer possible, so that only an amplifier with a large number of highlevel inputs and sophisticated technology can be considered for upgrading the system. And here the new UP 10DSP – 24V Edition offers the perfect solution.
Maximum connectivity
For optimal adaptation to existing multi-channel sound systems, the UP 10DSP – 24V Edition is equipped with not less than 8 highlevel inputs (two high power inputs with up to 32 Volts), an optical digital input, a MATCH extension card slot, 10 amplifier outputs and a total of 11 processed DSP channels.
In addition, intelligent technologies, such as the proprietary ADEP.3 circuit and 32 Bit ACO platform, ensure safe operation.
Virtual Channel Processing – that´s how signal routing works today
The adaptation to modern OE sound systems via an increasing number of inputs has a significant impact on the complexity of the signal routing inside the amplifier. Especially when several input signals are mixed together and then split again into multi-way systems, conventional routing concepts quickly reach their limits, both in terms of implementation and usability. Audiotec Fischer's new multi-stage "<a title="VCP" href="https://www.audiotec-fischer.de/en/knowledge-base/DSP-PC-Tool/vcp/">Virtual Channel Processing</a>", in conjunction with the recognized user-friendly <a title="DSP PC-Tool 5" href="https://www.audiotec-fischer.de/en/tools/dsp-pc-tool-5/">DSP PC-Tool software</a> makes it easy to realize even highly complex system configurations. Besides, it allows to freely assign our proprietary <a title="SFX Sound Effects" href="https://www.audiotec-fischer.de/en/knowledge-base/DSP-PC-Tool/sfx/">FX sound features</a> such as "RealCenter" or "Augmented Bass Processing". But the UP 10DSP – 24V Edition, thanks to its enormous number of channels in combination with the optional <a title="MEC ANALOG IN" href="https://www.audiotec-fischer.de/en/match/accessories/mec-analog-in">MEC ANALOG IN</a> module, is also a prime example for applications where 1 to 1 routing (IOR) makes sense.
Speed is everything – thanks to ACO
Such a huge number of channels requires ultra-fast hardware – Audiotec Fischer's proprietary 32 Bit ACO platform takes care of all control tasks and ensures the decisive speed increase, especially for data communication with our DSP PC-Tool software but also for the lightning-fast switching between up to ten sound setups. But ACO offers much more – fantastic sound effects such as Augmented Bass Processing or RealCenter are implemented as well as a channel-separated Input EQ including the Input Signal Analyzer (ISA) for easy analysis and compensation of input signals of OE radios.

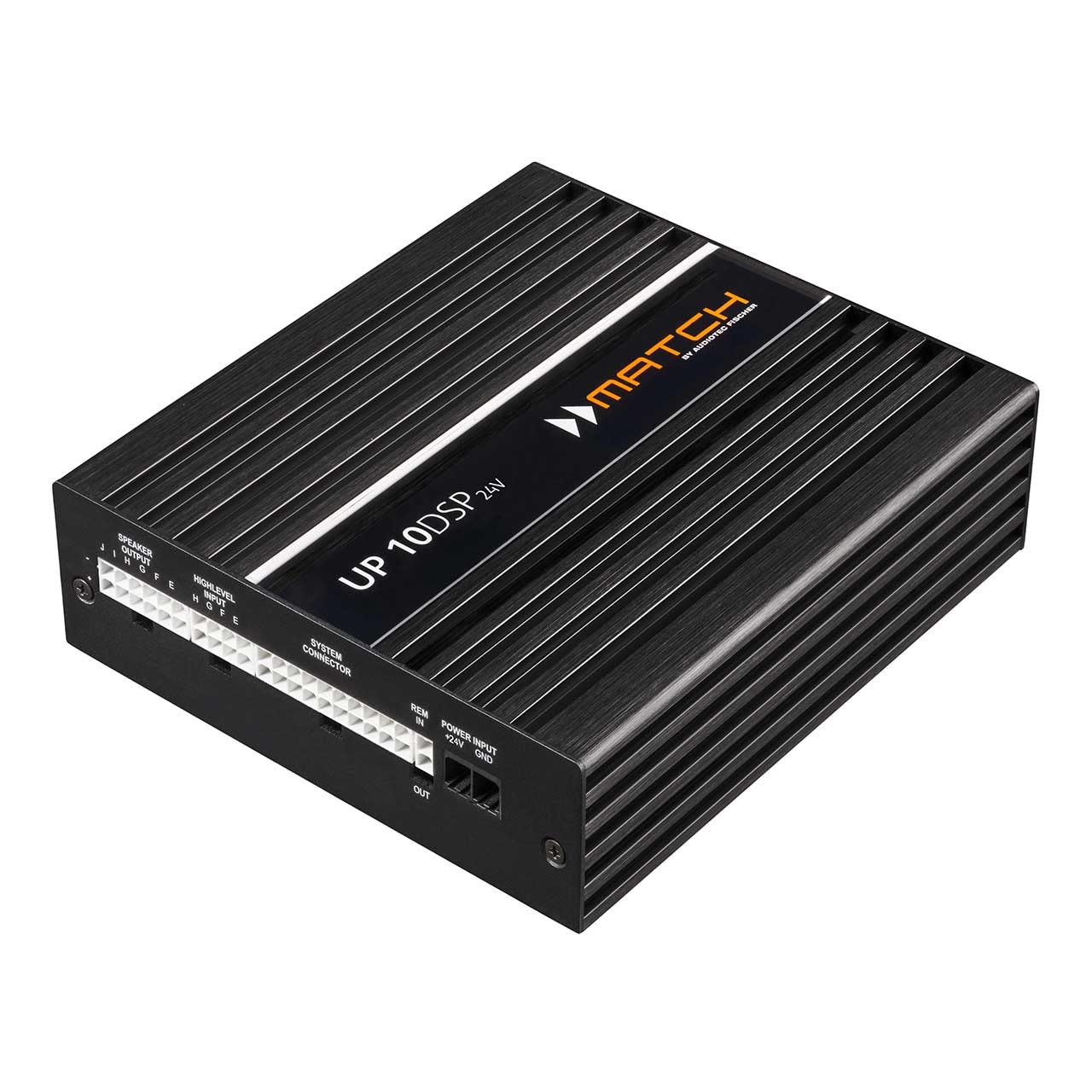

Powerhouse in a compact format
Despite its huge output power of 8 x 65 Watts at 4 Ohms and 2 x 90 / 160 Watts at 4 / 2 Ohms at the Sub Outs, as well as the enormous feature set, the UP 10DSP – 24V Edition comes in an extremely compact design, so that installation is possible even in confined spaces.
